Turntable



Gold Note
MEDITERRANEO

Manufacturer: AKAMAI S.r.l.
Price (when reviewed):
4 865 EUR (deck)
10 950 EUR (system)


Contact: Akamai S.r.l. | Via della Gora, 6
Montespertoli (Florence) Italy 50025

www.goldnote.it

MADE IN ITALY

Product provided for test by: AUDIO RANNY


uring Christmas Holiday I met one of my friends to enjoy some good food and wine and to talk about different things. At some point he said something like: 'nothings is actually produced in Europe anymore'. Well, he is kind of skeptic of European Union, mostly because of its huge bureaucracy, and it following almost Byzantine model. although he doesn't rush us to leave the EU, to be clear. His statement was a result of frustration, a sad confirmation of the fact that the rest of the world, mostly Asia, is outrunning Europe.

When I remembered all that I wasn't so sure anymore that nothing was made in Europe anymore. Even more so when one considered that many specialized manufacturers brought their production back to their homelands to have a better supervision over every stage of the whole process. I guess these companies that never moved their production outside Europe (USA and Japan) could feel like moral winners right now.

Kiedy tak na to popatrzyłem, nie byłem już taki pewien, czy rzeczywiście nic się w Europie nie wytwarza. Tym bardziej, że coraz więcej specjalistycznych wytwórców wraca z produkcją pod rodzimy dach, doceniając kontrolę nad każdym jej etapem. Tak więc te firmy, które nigdy się z Europy (USA lub Japonii) nie wyprowadziły, mogą czuć się moralnymi zwycięzcami.

Gold Note

Back in 2009 I reviewed a very innovative (at the time) product called DSS 30 Tube. Back then we didn't even know how to categorize it. The manufacturer, Blacknote, called it Digital Static Source (DSS). Today we would call this product a music server or a music files player that read signal from hard drives and flash drives.

It was the very first device offered by Italian company Akamai S.r.l. using Blacknote brand. The brand was new and it confused me a bit as I already had known two other brands owned by the same guy, Maurizio Aterini: Blue Note and Golden Note. I asked him back then to explained this confusion with brands:

WOJCIECH PACUŁA: Blue Note, Golden Note or Blacknote – so which company is it, as I can see as much as three different logos here…
MAURIZIO ATERINI: [laughing] All of them! The registered company's name is Blue Note, but we also registered three brands within the same company. We created 3 brands to a separate one for each type on device we produced – analogue sources and amplifiers (BeN), digital sources and amplifiers (GN) and 'new technology' devices (BkN) (see more HERE).

We dealt with products of all three brands in „High Fidelity” (see below). Some time later they all had been consolidated into one brand: Gold Note. In my opinion it was the right decision to make. It also involved design changes for the products and that also was a good move. Let me add that I love the new logo too.

Mediterraneo

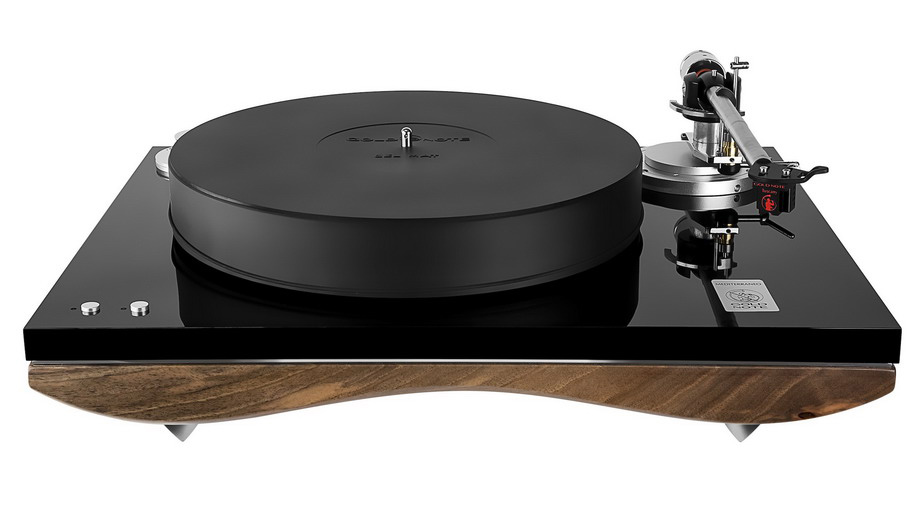

Mediterraneo turntable sits in the middle of company's range. And it is beautiful. When looking at it man knows right away that it is an Italian product, that it was designed and made by people with a special gift of a natural (not learned) sense of taste. This impression is created by a amazing plinth of Italian walnut combined with a steel insert and an acrylic top. The deck also sports, which is nots a rule today, a hinged cover. User can also adjust how quickly the covers closes. The deck sits on large, steel cones. All the proportions, used materials and finished are truly refined. One might say that this is 'just a turntable' but it introduces a spirit of 1950ties and 1960ties.

Range includes also two less expensive models: Giglio and Valore, and a flagship Bellagio sold in three versions: Reference, Conquest and Conquest Black King. The two latter are integrated with a special, stabilized rack „pendulum”, similar to those used by Transrotor and Clearaudio in their top models. Range includes also two tonearms, few cartridges, but also phonostages, amplifiers, CD Players, D/A Converters, loudspeakers, cables and beautiful audio racks. One could easily compose a complete audio system of this range. With one exception – there are no music servers which, considering my first experience with this company described above, seems somehow ironic.

SETUP

Mediterraneo is a classic mass-loader which makes the setup so much easier. When one orders a whole system deck comes factory fitted with a tonearm and cartridge which make is (almost) ready to use. One has to fit the drive belt, anti-skating and plug in the external power supply.

Later one might want to check and if needed adjust tonearm's and cartridge's setup using a protractor delivered with the turntable. One could also adjust VTF (vertical tracking force). In this case manufacturer declares the range between 1,8-2,1 g – in my experience something close to the maximum value works best so I decided to use 2 g and it worked fine. The cartridge delivered with the deck is a high level MC so it should work fine with any MM phonostage. I conducted part of this test using such setting but if you have a MC phono with adjustable gain you should try it too – it might yield better results, as it did in my case. The output signal of Machavelli Gold declared by manufacturer is of 1,2 mV, and most MM phonostages offer gain for cartridges with 3-5 mV output. So if only possible set the gain as close as possible to 1,2 mV.

We received for a review a complete turntable. Maurizio designed Mediterraneo to be specifically used with his own B-7 Ceramic tonearm (1550 €), Phono Cable Extra interconnect (1750 €) and Machiavelli Gold cartridge (2750 €). It is a 9” arm and the cartridge, as already mentioned, is a MC HO type (Moving Coil High Output). For this test I paired Gold Note turntable with RCM Audio Sensor Prelude IC phonostage with Crystal Cable The Absolute Dream power chord.

AKAMAI S.r.l. in “High Fidelity”
  • TEST: Goldenote KOALA TUBE – CD Player, test HERE (Polish)
  • TEST: Goldenote S-1 – integrated amplifier, test HERE (Polish)
  • TEST: Blacknote CDP 300 + DSA 150 - CD Player + integrated amplifier, test HERE (Polish)
  • TEST: Goldenote BELLAVISTA SIGNATURE + BETANIA + BALDINOTTI – turntable + tonearm + cartridge, test HERE
  • TEST: Blacknote DSS 30 TUBE – music server, test HERE
  • TEST: Bluenote PICCOLO + B-5 Mk II + BABELE – turntable + tonearm + cartridge, test HERE (Polish)
  • TEST: Bluenote MINI KOALA – DVD/CD Player, test HERE (Polish)

  • Records used for the test (a selection)

    • Smoke Sessions - Vol.1, Smoke Sessions Records SSR-1401, „Limited Edition Collection | No. 193/500”, 200 g LP (2013);
    • Depeche Mode, Fragile Tension/Hole to Feed, Mute Records 12BONG42, 2 x 180 g, maxi-SP LP
    • Dire Straits, Brothers in Arms, Warner Bros./Mobile Fidelity Sound Lab MFSL-2-441, „Special Limited Edition No 3000”, 45 RPM, 2 x 180 g LP (1985/2014)
    • Duke Ellington, Masterpieces by Ellington, Columbia/Analogue Productions ML 4418, 200 g LP (1951/2014)
    • I Ching, I Ching, Savitor SVT 008/009, 2 x LP (1984)
    • John Coltrane, Giant Steps, Atlantic/Rhino R1 512581, „Atlantic 45 RPM Master Series”, 2 x 180, 45 rpm (1960/2008)
    • Maria Callas, Maria Callas Remastered, Warner Classics 2564624295, 180 g LP (2014)
    • Mark Knopfler, Tracker, British Groove Records 4716983, „Deluxe Limited Edition”, 2 x CD + DVD + 2 x 180 g LP (2015);
    • Otis Redding, Otis Blue, Volt Records/Rhino 8122795608, “No. 5340”, 2 x 180 g LP + 45 RPM SP (1964/2015)
    • Pharrell Williams, Happy [From Despicable Me 2], Columbia 884305363, 45 RPM maxi-SP (2014)
    • The Montgomery Brothers, Groove Yard, Riverside/Analogue Productions AJAZ 9362, 2 x 45 rpm 180 g LP (1961/2009)
    • Wes Montgomery & Wynton Kelly Trio, Smokin’ At The Half Note, Verve/Universal Music K.K. [Japan] UCJU-9083, 200 g LP (1965/2007)
    Japanese CD editions are available from

    Our brains tend to identify what we see with the way we can hear it. Basing on stereotypes and personal believes we transfer certain elements from one world to another. Let's talk, for example, about gold. In audio it is used as a foil on Compact Discs deflecting laser's light, replacing aluminum in this job. Most people believe that gold Cds offer warmer, richer sound. My personal experience confirms that believe.

    Audiophiles are not the only ones that perceive gold in this way as same might be said about musicians. As it reads in an article by Olga Fibak in “Ruch Muzyczny” magazine:

    It is believed that gold flutes sound warmer, softer than silver ones, although it is a matter of personal sensitivity to the sound.

    Olga Fibak, Instrument, moja miłość, “Ruch Muzyczny” #12, December 2015, p. 6

    The author adds that research does not confirm this believe and yet most musicians believe it to be true.

    Admiring Mediterraneo's aesthetic first and then listening to it I was in complete agreement with such believes. In high-end audio wood and Italy are widely associated with a warm, rich, refined sound. Now, if you have better things to do you skip next paragraphs right to the summary, as I will mostly elaborate on these three, already mentioned features.

    Maurizio's turntable offers particularly enjoyable listening experience. Elements creating this impression are: a complete lack of brightness and harshness, a rich midrange and an inner richness of the sound that translates into sort of calm: calm or peace achieved via meditation and not castration (of dynamics and attack). Listener immediately focuses on midrange as this part of the range is most charming. Both range extremes are not so exposed compared to midrange, and lower should be more powerful. I confirmed that impression listening to Metallica's Master of Puppets, the double 45 r.p.m. edition, AC/DC's concert, or the latest Jean-Michel Jarre’s project. All these albums sounded good, I enjoyed them a lot even though I missed some more powerful, more immediate attack.

    It didn't take long before I focused on those albums where a vocal played leading part, or instruments operating mostly in lower midrange. Let me say that again – it happened not because I didn't enjoy rock music but simply because jazz, classical music, minimal sounded so good that I didn't feel like changing these genres for others.
    Despite that I wouldn't say that any part of the range was emphasized. It's a feature is a carefully thought-through designs.

    Yes, performance in lower bass area was somewhat limited, and mid-bass could be faster and more powerful. But I perceived it not as a flaw of this performance but as its “feature”. A one that I could easily live with or even forget about it at least until I played some music that would clearly remind me about it.

    When using this turntable I was compelled to play high quality releases of: Analogue Productions, MoFi, ORG, Pure Pleasure and others! Each time I had both, 33 1/3 rpm and 45 rpm at my disposal I listened to the latter. Because with them turntable delved deeper between sounds enriching them with more meaning and delivers tangible, rich presentation. Tonal differentiation is really good and sound is particularly rich. This way Mediterraneo presents all qualities of such records.

    High quality releases and Gold Note turntable are a perfect match. So the way it played albums prepared using digital masters came as a surprise. Usually such albums deliver rather 'dry', often 'harsh' sound, but with Maurizio's turntable they sound quite OK, acceptable. Like,for example, Maria Callas Remastered, released on vinyl using a CD box release of her complete works as a pretext. Sound it (normally) rather bright but when played on Mediterraneo this album did not sound bright at all. This turntable differentiates recordings quite well so don't expect every vinyl to sound equally well, performance won't always be equally enjoyable. But the way music is played attracts out attention to the qualities of each record making us also ignore any issues of said recording.

    Another great aspect of this turntable is its very quiet operation – there is only few cracks&pops and background noise is also very low. Of course there are some pop&crack, as these are records dependent, but the Italian turntable places them on the fringe our listener's attention, not in a center. Such approach allowed me to enjoy some Polish releases from particularly bad time (bad in terms of quality of record pressing) of 1980ties. One of these records was I Ching, that I bought for a few zloty on Allegro in mint condition. Also some records that already wore off because of frequent usage sounded pretty well. I truly enjoyed listening to them as they offered a rich, coherent sound with a bit ethereal but also quite resolving treble.

    Summary

    Summarizing this review with a quote from Jestem z miasta by Elektryczne Gitary that goes like this: „to widać, słychać i czuć” (‘one can see, hear and feel that’) might seem to be a cliche. And yet here I go because this cliche tells you the whole truth about this device: the Mediterraneo turntable looks, sounds and makes one feel like a wonderful, high quality Italian product should. Chic and style plus many years of experience. It is not a perfect all-rounder as some records won't shine with it although will still deliver rich, enjoyable performance. It is a proposition for someone who is ready for a long time commitment. If that's what you want and if you can afford Mediterraneo than go ahead – this beautiful device will allow you to enjoy the music and will look great in your room – two for a price of one :).

    Mediterraneo (deck)

    Mediterraneo is a non-suspended mass-loader. Vibrations are damped due to usage of three different materials for its base: acrylic, steel and wood. What makes it look so special, so Italian is the wooden curved platform handmade from aged Tuscan Walnut. It features irregular shape that helps to control vibrations.

    Its finish is remarkable – it seems to me that only Italians are capable of turning a piece of wood into such a beautiful piece of applied arts. Yes, I know it is not actually true, but it surely seems like that to me. This beautiful wooden platform sits on three tall, massive aluminium spikes with mat finish, that are placed on three small, brass discs.

    A maximum thickness of wooden part of the plinth is 60 mm. On top of it sits a 3 mm thick polished steel plate, and on top of that another 20 mm of black acrylic (white version is also available). This steel element is clamped to the wooden platform in 18 different point carefully chosen for the best sonic results. The electronic control circuits are placed in the top layer. The whole plinth measures: 80 x 400 x 500 mm.

    Mediterraneo features also a nice, acrylic cover. In recent years many manufacturers decided to stop using covers as these often downgrade sound quality. This time I truly appreciated the practical aspect of having a cover as dusting a turntable every day is surely not my cup of tea.

    A new 12 Volt synchronous motor electronically controlled by the PWM design sits in the rear left corner. The PWM – Pulse-Width Modulator– transforms the power voltage in AC-DC-AC mode, enhancing the best coupling of the two AC semi-waves for a perfect performance, eliminating virtually any motor resistance and vibration, and allowing at the same time the highest motor torque. The Power Supply of the motor electronically controls the 33 rpm, the 45 rpm, and the fine speed adjustment, thus keeping the selection permanently in the turntable memory even without AC power. The new perfectly polished hourglass shaped motor pulley also allows the turntable belt to spin very smoothly reducing the wow&flutter and noise.

    The platter is 45 mm/ 1.77 inch thick and made of black Sustarin, a special material based on a PTE polymer; rigid but dead at the same time, it features an extraordinary ability to reduce vibration feedback while the high mass helps a regular rotational stability.
    The platter is designed to stay only 3 mm away from the turntable plinth. Such small platter/plinth interference allows reducing turbulence featuring the greatest noiseless functionality.

    The bearing is made of polished bronze featuring a 1/100 mm tolerance. The spindle is made of the hardest carbon steel hardened with a boiling oil process. After the boiling process, the spindle is rectified and polished to guarantee a perfect working fluidity

    Specifications (according to the manufacturer)

    Wow&flutter: 0,02%
    Rumble: -82 dB
    Speed: 33-1/3 and 45 rpm +/-0,1%
    Power consumption (max): 20 W
    Dimensions: 470 mm L x 210 mm H x 360 mm D
    Weight: 25 kg

    Upgrades
    External AC filter: Lucca Power Distributor
    Other: Gold Note Lucca power cords

    B-7 Ceramic Tonearm

    B-7 Ceramic is a 9” gimballed tonearm (effective length of 223 mm) that features a titanium arm wand. It is made in six different thickness sections to enhance the damping vibration feedback effect due to both, the material and the geometry. The Tone-Arm features a double counterweight to set up most of the market phono cartridge up to 15 gram mass. Optionally other extra weights are available to handle phono cartridges with higher mass

    B-7 CERAMIC features four high precision custom made for Gold Note by GRW-Germany micro ceramic ball bearings designed to enable extraordinary low noise quality. The vertical ball bearings are pivoted through custom stainless steel threaded bolts manually adjusted, while the horizontal movement is driven by two micro ball bearings directly inserted in the main rectified pivot of the arm runs into the 23mm diameter arm shaft from which the arm can be secured to the turntable plinth. The internal wiring sports Hyper Litz 99,9999% OFC wire. Using a 5-pin DIN socket one connects turntable with phonostage using Gold Note Phono Cable Extra.

    Machiavelli cartridge

    Machiavelli is Gold Note's top High Output Moving Coil cartridge. As the name suggests it is a cartridge with moving coils but it generates a higher output, similar to that of Moving Magnet carts. In this particular case we are talking about output of 1,2 mV. Also the impedance is the same as of MM cartridges - it's 47 kΩ.

    Its body is pretty light (10 g), but particularly rigid – it's made of Duraluminum alloy. It features a Boron cantilever and line contact diamond. In fact it was made in cooperation with a renown manufacturer, Adamant-Namiki. The used cooper wire for coils and Samarium-Cobalt magnets.


    Specifications (according to manufacturer)

    Output level: 1,2 mV
    Frequency range: 10-40 000 Hz
    Impedance: 80 Ω
    Recommended loading: 47 kΩ
    Compliance: 10×10-6 cm/dyne
    Channel separation: >28 dB
    VTF: 1,8 – 2,1 g
    Diamond size: 5×20 μm
    Mounting hole diamond distance: 9 mm
